Item# KT-AR424F16

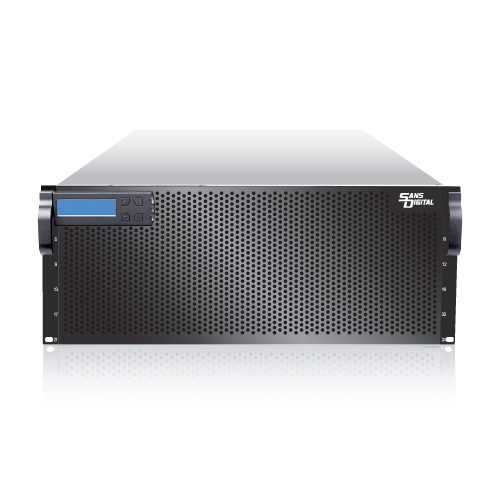

The AccuRAID AR424F16 Series is a 4U rack-mountable RAID solution designed for file servers, backup, audio/video streaming, and digital video recording. With a capacity of up to 72TB, this array is perfect for any application that requires a high volume storage solution. With dual high-performance 16G Fibre Channel host interface and cutting edge 6G SAS and 6G SATA dual hard drive (additional MUX board required for SATA hard drives) support, the AR424F16 is guaranteed to deliver 16Gbps FC performance per channel. Users could flexibly choose between high performance SAS drives or cost-effective / high capacity SATA drives. With SAS expander support, the AR424F16 is capable of up to 480TB of capacity with additional AS424X6S JBOD expansion units. The feature-rich array allows the user to configure the unit to suit current demands and expand later when needed. The array utilizes 24 hot-swappable 3.5” trays with 2.5" screw holes for SSD/SAS/SATA drives, allowing quick replacement and simple trouble-shooting. The AR424F16 RAID subsystem could also be easily scaled to RAID levels 0, 1, 0+1, 3, 5, 6, 30, 50, 60 or JBOD configurations. Featuring durable, heavy duty steel housing and a user-friendly LCD panel , the AR424F16 will meet all data intensive application demand. AR424F16 comes with modular RAID controller, redundant power supply and redundant cooling fans. Built-in redundant controller ready backplane allows non-destructive redundancy controller upgrade path without purchasing a brand new hardware.

Note: Sans Digital recommends the use of enterprise hard drives when in use with any RAID controller applications. Standard desktop or green desktop drive may not be supported and may compromise RAID system stability and performance. For more information on the difference between RAID and desktop hard drives, please see the Western Digital knowledge base. For a list of compatible RAID Edition SATA hard drives, please CLICK HERE.


  • 800MHz processor with 2GB on-board ECC cache memory (upgradeable to 8GB).
  • 6G SAS/6G SATA RAID 60 ASIC engine, providing the highest level of data protection.
  • Support both 3.5" and 2.5" form factor hard drives and SSD.
  • Dual Channel Fibre Channel 16Gpbs connector supporting fail-over.
  • Supports SAS JBOD (AS424X6) expansion with up to total of 112 drive bays.
  • Redundant and hot-swappable power supply and cooling fans.
  • O/S-Independent and host transparent RAID solution.
  • Upgradable to redundant controller version (AR424F16R) for high availability and redundancy.


  • Supports JBOD, RAID 0, 1, 1E, 0+1, 3, 5, 6, 30, 50, 60 with hot spare and multipile volumes.
  • RAID 6 tolerates multiple drive failures without downtime or data loss, providing the most advanced level of data protection.
  • Supports online array roaming, online RAID level / stripe size migration and online capacity expansion.
  • Hot swappable drives that support hot spare and automatic hot rebuilding with automatic drive insertion / removal detection.
  • NVRAM transaction log, and S.M.A.R.T. to improve the RAID system integrity, reliability, and availability.


  • Embedded enclosure management through WEB GUI, LCD control panel, and online RAID management via RS-232 port.
  • Intuitive, yet comprehensive GUI for configuration and monitoring from remote and local locations.
  • Field-upgradeable firmware in flash ROM, redundant RAID controller firmware upgrade via RS-232 and WEB GUI.
 Model  AR424F16
 Form Factor  4U Rackmount
 Controller  Single Controller, Upgradeable to Redundant Controller
 HDD Trays  24 Hot-Swappable 3.5" (2.5" form factor supported via screw holes)
 RAID Level   0, 1, 0+1, 3, 5, 6, 30, 50, 60, JBOD
 Maximum Capacity  72TB, Expandable to 360TB
 Auto Rebuilding  Yes
 Hot-Spare  RAID 1, 1+0, 3, 5, 6, 30, 50, 60
 Host Interface
 & Transfer Rate
 Dual Fibre Channel (16 Gbps)
 Expansion Ports  Mini-SAS x 1; expandable to 6 JBOD arrays (AS424X6S)
 Drive Interface  6G SAS / 6G SATA (Additional MUX board requried when use with SATA drives
 and Redundant Controller Option)
 Cooling Fan  2 Hot-Swappable Modules & Blowers
 Power Supply  500W X 3 Redundant
 Control Interface  LCD Panel, RS232, RJ-45 Ethernet
 Dimension (in)  19"W x 21"D x 7.5"H
 Weight (lb)  80
 Safety Regulations  CE, FCC, UL, RoHS
 Limited Warranty  3 Years
 Package Contents  Rackmount Rail (1 Set)
 Power Cords (3)
 Fibre Optic Cables (1)
 16G SFP+ Modules (1)
 Serial Cable (1)
 Hard Drive Mounting Screws (96)
 Printed User Guide or CD Manual (1)
Enterprise RAID Edition Hard Drive
 Model  AR424F16  AR424F1624E  AR424F1648E  AR424F1672E  AR424F1696E
 Hard Drive  No HDD
 SATA * 24
 SATA * 24
 SATA * 24
 SATA * 24
 Storage Size
 N/A  24TB  48TB  72TB  96TB

SAS Hard Drive Bundle
 Model  AR424F16  AR424F1624S  AR424F1648S  AR424F1672S  AR424F1696S
 Hard Drive  No HDD
 SAS * 24
 SAS * 24
 SAS * 24
 SAS * 24
 Storage Size
 N/A  24TB  48TB  72TB  96TB

15K SAS Hard Drive Bundle
 Model  AR424F167K  AR424F1614K
 Hard Drive  300GB SAS
 15K RPM * 24
 600GB SAS
 15K RPM * 16
 Total Storage Size  7.2TB  14.4TB

Note: Please allow up to 3 days for hard drive installation and testing.

Note: All hard drive bundles are pre-installed and tested before shipment. Hard drives are then packaged individually to avoid damage during shipping.
