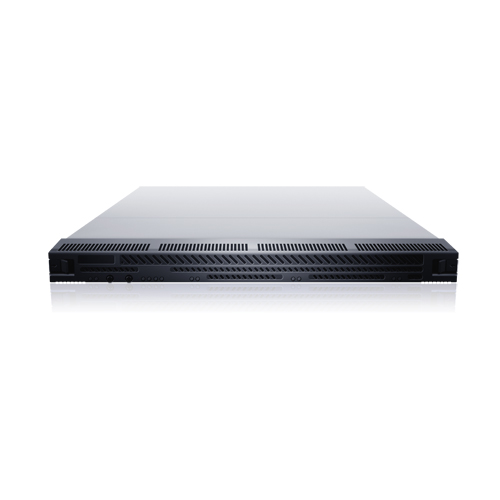

AccuNAS AN104LS - Linux NAS + iSCSI 1U 4 Bay Storage Rackmount

AccuNAS AN104LS - Linux NAS + iSCSI 1U 4 Bay Storage Rackmount
AccuNAS AN104LS - Linux NAS + iSCSI 1U 4 Bay Storage Rackmount
Item# ST-SAN-AN104LS
This item is currently out of stock. Contact for more info

The AccuNAS AN104LS Linux Series offers comprehensive NAS in a feature-dense 1U server with Intel Celeron D CPU. A performance tuned Linux-based server operating system with unlimited clients, up to 8TB storage, PCI-X expansion, dual Gigabit Ethernet let AccuNAS satisfy any network storage need. Get enterprise-class features and stability with AccuNAS series.

Note: Please allow 3 days for rackmount testing before shipment.
Dual Gigabit with RAID 5 Support
Designed with high availability and low TOC in mind, AccuNAS Linux edition is built with simple setup and maintenance features. Installation wizard for easy implementation, convenience web-based management for local or remote configuration, Dual 10/100/1000 network support for teaming or redundant networking, and RAID 5 support for your date storage make AccuNAS a simple trouble free unit.

Feature Rich Network Storage
In comparrison to other NAS units in the market, AccuNAS is bundled with many additional advanced features at no additional charge. iSCSI target support for iSCSI applications, NAS to NAS folder replication, scheduled or on-demand volume snapshot, local tape backup support and unlimited client side Windows-based file backup just to name a few.

If you looking for features, performance and fast GUI responds time, or if you are not getting what you paid for from other competitors products, the AccuNAS Linuxed Edition will be the perfect solution for you.


  • Linux based OS specificaly made for NAS application.
  • 3.06GHz Celeron D CPU or above.
  • 512MB DDR2 memory, upgradeable to 8GB maximum.
  • Up to 6TB of storage capacity, support latest 1.5TB SATA II hard drive.
  • Built-in RAID 5 support for data redundancy.
  • Dual gigabit ethernet.
  • Convience setup and easy maintainance.
    • NAS discovery tools for easy deployment.
    • Web GUI configuration interface supporting Internet Explorer and Firefox browers.
    • Informational Event Log for diagnostic.
    • Supports local user account.
    • Supports Windows Active Directory Service or Primary Domain Server and Workgroup.
    • Supports HTTPS/SSL service.
  • Storage protection.
    • Designed with Linux based Journaling file system (XFS).
    • Bundled with client side files backup utilities for Windows based computer.
    • NAS to NAS replication supporting scheduled block-level or file based with multiple version or full replication with bandwith control.
    • Supports scheduled or on-demand volume snapshot.
    • NAS system configuration backup and restore.
    • Supports Local Tape backup, NDMP or 3rd party backup agent.
  • iSCSI Target.
    • Supports iSCSI target.
  • Special User Features.
    • Bundled with free, unlimited clients side Windows Based Backup utilities.
    • Files anywhere features where users can upload or download their files from anywhere through HTTPS and their Windows with Internet Explorer 6.0 or above.
    • Send a download mail feature to allow users to send a link to download files instead of attachments.

 Model  AN104LS Series
 Form Factor  1U Rackmount
 Processor  3.06 Celeron D CPU or above
 Memory  512MB DDR 2 ECC Memory, Upgradeable to 8GB
 RAID Level  Build-in RAID 0,1, and 5 Support
 Maximum Capacity  8TB
 Available Expansion Slot  1 x PCI-X 133
 Hot-Swappable  Yes
 Chipset  Intel E7230 (Mukiteo) / 82801GR (ICH7R)
 Network  On-board 2 x 1000/100/10 (Broadcom BCM5721J)
 Supports Teaming over 2 ports
 Hard Drive Trays Supported  4 x SATA HDD trays
 Hot-Swappable  Hot-Swap
 Cooling Fans  2 x System Blower Fans for CPU and
 Memory 1 x 4cm Fan for PCI slots
 Power Supply  345W Power Supply (Delta), PFC Auto switch for
 100 ~ 127V and 200 ~ 240V; 50 ~ 60Hz
 Status Indicators  Power LED, Network LED, HDD LED
 Dimension (in)  1.68” H x 16.73” W x 23.5” D
 Weight (lb)  26 lb with HDDs installed (Sliding rail included)
 Certifications & Compliance  FCC, CE, UL, RoHS
 Limited Warranty  1 Year

 Model Name  AN104LS  AN104LS2T  AN104LS4T  AN104LS6T  AN104LS8T
 OS  Linux 2.6.xx based OS specificaly made for NAS application
 CPU  3.06 Celeron D or above
 Memory  512 MB DDR-2 ECC Memory
 RAID Structure  RAID Support RAID 0, 1, and 5
 Avaliable Expansions Slot  1 x PCI-X 133
 Hard Drives Trays  4 * Hot-Swappable SATA Hard Drive
 Hard Drives  No HDD
 HDD * 4
 HDD * 4
 HDD * 4
 HDD * 4
Total Storage  N/A  2TB  4TB  6TB  8TB

Note: Please allow 3 days for hard drive installation and testing.

Note: All hard drive bundles are pre-installed and tested before shipment. Hard drives are then packaged individually to avoid damage during shipping.
