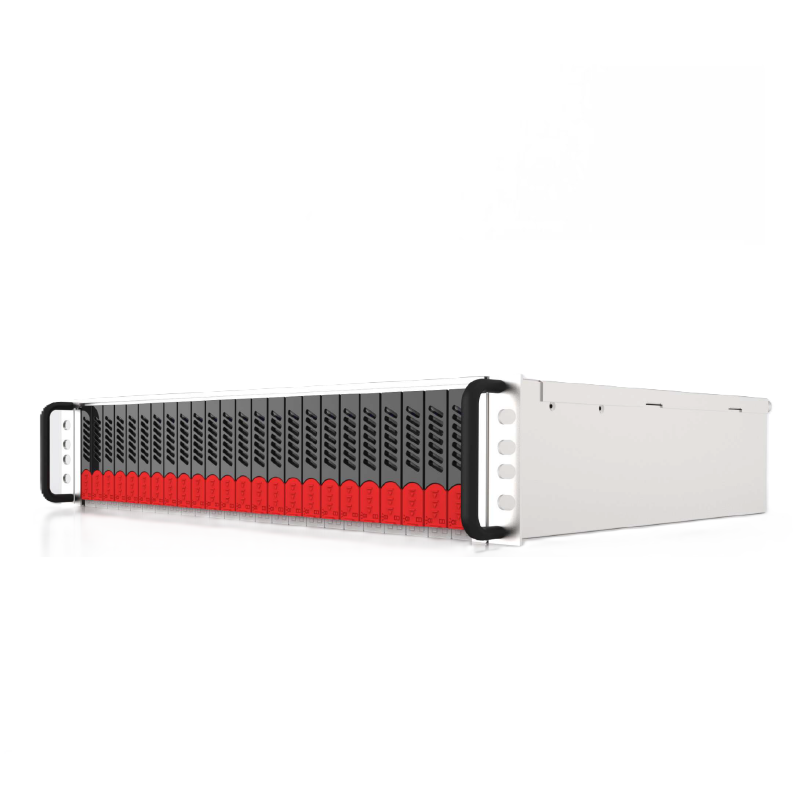

AccuSTOR JBOF AF224X4 - 2U 24-Bay All-Flash NVMe Solution

AccuSTOR JBOF AF224X4 - 2U 24-Bay All-Flash NVMe Solution
AccuSTOR JBOF AF224X4 - 2U 24-Bay All-Flash NVMe Solution
Item# ST-SAN-AF224F4
Host Bus Adapter:

The AccuSTOR AF224X4 is a 2U JBOF (Just a Bunch of Flash) Enclosure that support 24 hot-swappable NVMe 2.5 SSD for extreme performance need. Using NVMe switching technology, this 24-bay JBOF provides PCIe x16 Gen 3 performance using a fully non-blocking and low-latency JBOF performance with up to 8 host access to PCIe NVMe drives. The enclosure is equipped with two PCIe switch, providing direct access to 24 high-speed NVMe SSD. AF224X4 come with hot-swappable, redundant components for cooling fans and power supplies to allow to use in critical environment. AF224X4 is bundled with host bus adapter for easy installation and trouble free setup.With up to 512GT/s performance, AccuSTOR AF224X4 is an ideal choice for NVMe storage.
  • Support NVMe 2.5" SSD for High-Performance Application - Support 24x PCI NVMe 1x4 SSD drives, operates at up to 512Gb/s, PCIe Gen 3 speeds.
  • Latest PCIe Switching Technology - of 2.5" small form factor SFF hard drives tray supporting SATA or SAS SSD or hard drives.
  • High Bandwidth for Extreme Data Transfer - PCIe Gen3 x64, 512GT/s upstream, 24x 1x4 PCIe Gen3 NVMe drives downstream.
  • Hot-swappable components - 24 x hot-swappable NVMe SSD drives trays, hot-swappable cooling fan and 80+ 1+1 power supplies modules.
  • LCD Module - Build-in LCD display critical systems status for easy trouble-shooting.

 Model  ST-SAN-AF224F4
 Form Factor  2U Rackmount
 HDD Trays  24 Hot-Swappable 2.5"
 Connections  2x quad SFF-8644 connectors, Type B USB port for terminal, RJ45 Ethernet 10/100 port, Mute button
 System Alarm  Buzzer beeping for critical events (FANs, PSUs, over voltages and temperatures)
 I/O Capability  ​Upstream bandwidth - PCIe Gen3 x 64, 512 GT/s, Downstream bandwidth - 24bays SSDs with PCIe Gen3 2x2
 Serviceability  Hot-Swappable SSDs, FANs, PSUs, PCIe switch modules
 LED Status  SSD, Fan, PSU, PCIE Port Link Width and Host Port
 System Cooling  2x 3" (W) x 3" (H) x 1.5" (D) Fans
 Power Supply  2x 800W 80 PLUS Titanium
 Dimensions  2U 19 (W) x 3.5 (H) x 14 (D)
 Warranty  3 Years
