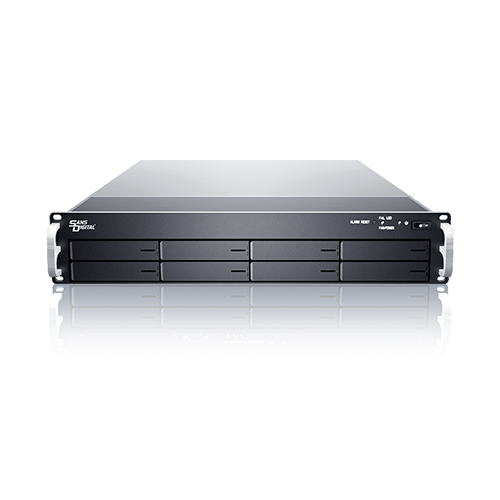

EliteRAID ER208I+B - 2U 8 Bay SATA to iSCSI 2x GbE RAID 60 Rackmount

EliteRAID ER208I+B - 2U 8 Bay SATA to iSCSI 2x GbE RAID 60 Rackmount
EliteRAID ER208I+B - 2U 8 Bay SATA to iSCSI 2x GbE RAID 60 Rackmount
Item# ST-SAN-ER208IplusB
$1,950.00
Model:  Power Supply:  Warranty:

The EliteRAID ER208I+B is the latest hardware RAID storage to EliteRAID iSCSI solution. ER208I+B is a 2U 8-bay dual channel iSCSI storage supporting advanced features, such as Multiple Channel per Session (MC/S), iSCSI jumbo frame and Microsoft MPIO. SCSI-3 persistent target is available for clustering server application. Built-in Web GUI management interface and event notification E-mail, SNMP trap, browser pop-up Windows, Syslog and Windows Messenger allow administrators to monitor unit status with ease. Besides RAID 5, Mirroring (RAID 1) and Striping (RAID 0), ER208I+B supports RAID 6 to protect against up to two hard drive defects. Utilizing both SATA I and SATA II host interfaces, and dual gigabit Ethernet port (up to 190MB/s), the ER208I+B is guaranteed to achieve the best performance with fail-safe file protection.

Note: Please allow 3 days for rackmount testing before shipment.
Features

  • Intel IOP 80331 64bit processor with 512MB memory, upgradeable to 1GB.
  • Supports iSCSI Multiple Channel per Session (MC/S).
  • Supports Microsoft MPIO.
  • Supports iSCSI Jumbo Frame.
  • Supports SCSI-3 persistent target. Supports Windows Server 2008 clustering.
  • Supports RAID 0, 1, 3, 5, 6, 30, 50, 60, JBOD. Local N-way mirror supported.
  • Supports global and dedicated hot spare disks.
  • Online volume expansion and migration.
  • UPS management supported via serial port.
  • HTTP Web GUI, SSH telnet and serial management interface.
  • Event notification via E-mail, SNMP trap, browser pop up windows, Syslog and Windows Messenger.
  • iSNS supported.
  • Up to 190MB/s read/write performance.
  • Optional battery backup module.


 Model  ER208I+B
 Form Factor  2U Rackmount
 Processor  Intel 80331 64-bit RISC
 Memory  2GB DDR 333
 HDD Trays  8 Hot-Swappable 3.5"
 RAID Level  0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60, JBOD
 Maximum Capacity  24TB
 Maximum Host Connections  32
 Maximum Cluster
 Hosts Connections
 16 hosts clustered for one volume
 Maximum Logical Volumes  256
 Microsoft MPIO Support  Yes
 iSCSI MC/S Support  Yes
 iSCSI Jumbo Frame Support  Yes
 SCSI-3 Compliant  Yes
 Auto Rebuilding  Yes
 Hot-Spare  Yes (Global and dedicated hot spare disks)
 Host Interface & Transfer Rate  Dual Gigabit Ethernet (Up to 190MB/s)
 Drive Interface  SATA
 Cooling Fan  2 x 2” Cooling Fan
 Power Supply  450W Power Supply
Input:100V~240V
Output:50~60Hz 200W
 Status Indicators  LEDs for HDD, Temperature and Fail LED
 Management UI  Web or SSH Telnet, Serial port
 Supported OS  Windows 7/XP/2000/2003, Mac OS X or above,
 Linux 2.4 or above
 Dimension (in)  19" W x 23" D x 3.5" H
 Weight (lb)  42
 Certifications & Compliance  FCC, CE, UL, RoHS
 Limited Warranty  3 Years
 Model  ER208I+B  ER208I+B4T  ER208I+B8T  ER208I+B16T  ER208I+B24T
 Hard Drive  No HDD
 Bundle
 500GB
 SATA * 8
 1TB
 SATA * 8
 2TB
 SATA * 8
 3TB
 SATA * 8
 Total Storage Size  N/A  4000GB = 4TB  8TB  16TB  24TB

Note: Please allow 3 days for hard drive installation and testing.

Note: All hard drive bundles are pre-installed and tested before shipment. Hard drives are then packaged individually to avoid damage during shipping.
