Item# ST-SAN-ES104Xplus
Model:  Controller Card:  Rackmount Bracket:  This item is currently out of stock. Contact tech@sansdigital.com for more info

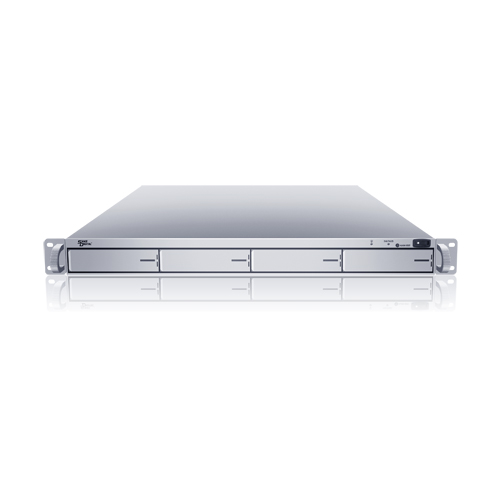

The EliteSTOR ES104X+ Series is a 1U 4-bay rack-mountable solution with a single mini-SAS connection, for high transferring rates of up to 400MB/s when used with a high performance RAID controller card. Utilizing high bandwidth mini-SAS (SFF-8088) cabling, the ES104X+ supports 6Gb/s SAS or SATA hard drives to deliver superior read / write speeds that are crucial in performance-driven environments such as video editing industry and server application. The mini-SAS ports combine four hard drives connections into one, and reduce possible points of failures, while preserving uninterrupted data transfer. The ES104X+ also supports SATA drives, allowing users to have the option to choose between high performance and high capacity storage solutions. Hard drive and RAID controller bundle options are available. When utilizing a SAS or SATA RAID controller, the unit could effortlessly support multi-streaming of compressed high-quality playback or a single-stream of uncompressed 10-bit high definition video under various RAID modes.

For redundant power supply model, please visit ES104X+R.

Unique Features

  • 4 hot-swappable drives in 1U rackmount.
  • Supports SAS hard drives, with up to 3TB per hard drive.
  • Mini-SAS (SFF-8088) to ensure optimal performance.
  • Real time temperature and fail LEDs.
  • Built-in 80Plus 220W power supply unit.
  • Optional redundant power supply and rackmount L bracket available.
  • Supports industry standard RAID controllers, including 3 Ware/LSI, ATTO, Adaptec, Areca, Intel and HP.

 Model  ES104X+
 Form Factor  1U Rackmount
 HDD Trays  4 Hot-Swappable 3.5"
 Maximum Capacity  16TB
 Auto Rebuilding  Supported by RAID controller
 Hot-Spare  Supported by RAID controller
 Host Interface & Transfer Rate  Mini-SAS (1200 Gbps)
 Drive Interface  SAS / SATA
 Cooling Fan  1.6" Ball Bearing x 3
 Power Supply  150W 80PLUS Auto switch for 100V - 240V; 50 - 60Hz
 Status Indicators  4 LEDs for HDD, Temperature and Fail LED
 Dimension (in)  1.68 H x 19 W x 15 D
 Weight (lb)  16
 Safety Regulations  CE, FCC, UL, RoHS
 Limited Warranty  3 Year
 Model  ES104X+  ES104X+4E  ES104X+8E  ES104X+12E  ES104X+16E
 Hard Drive  No HDD
 SATA * 4
 SATA * 4
 SATA * 4
 SATA * 4
 Total Storage Size  N/A  4000GB = 4TB  8000GB = 8TB  12000GB = 12TB  16000GB = 16TB

 Model  ES104X+  ES104X+2S  ES104X+4S  ES104X+8S  ES104X+12S
 Hard Drive  No HDD
 500GB SAS
 SATA * 4
 SATA * 4
 SATA * 4
 SATA * 4
 Total Storage Size  N/A  2000GB = 2TB  4000GB = 4TB  8000GB = 8TB  12000GB = 12TB

Note: All hard drive bundles are pre-installed and tested before shipment. Hard drives are then packaged individually to avoid damage during shipping.
