TowerRAID TR4X-BHA - 4 Bay SAS / SATA RAID 5 Storage Enclosure (Black)

Discontinued - See TR4X+BHA as its direct replacement.

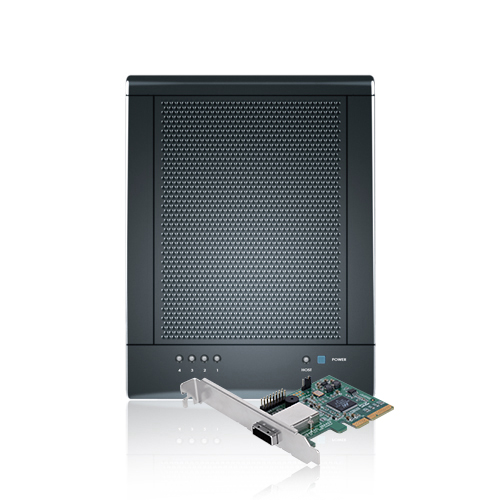

The TowerRAID TR4X-BHA is a 4-bay RAID storage tower with a single mini-SAS connection, delivering over 300MB/s in performance. With a bundled PCIe 4x controller card, the TR4X-BHA is a complete RAID solution providing high performance storage in mission-critical envirnoments. The TR4X-BHA could be easily setup and maintained via a built-in Web Browser interface. E-mail notification is supported when critical errors occur. Utilizing high bandwidth 1200MB/s mini-SAS (SFF-8088) cabling, the TR4X-BHA supports 3Gb/s SAS or SATA hard drives to deliver superior read / write speeds that are crucial in performance-driven environments such as video editing industry. The mini-SAS ports combine four hard drives connections into one, reducing possible points of failures, while preserving uninterrupted data transfer. The TR4X-BHA also supports SATA drives, allowing users the option to choose between high performance and high capacity storage solutions.

Unique Features

• Complete RAID storage solutions, no extra componment needed.
• Supports four 3.5-inch SAS or SATA hard disk drives
• PCIe 4x controller allows the offload of RAID calculation to controller card.
• Supports RAID 0, 1, 1+0, 5 and JBOD.
• Easy to setup Web-browser interface.
• High Performance delivery over 300MB/s read write performance.
• Cable-less backplane design supporting hot-swappable SATA I, SATA II and SAS hard drives.
• Supports plug & play for easy installation.
• Compact enclosure with dust-free cover.
• Supports PC, MAC and Linux.

Model	TR4X-BHA
Form Factor	Compact Tower
HDD Trays	4 Hot-Swappable 3.5"
RAID Level	0, 1, 1+0, 5 and JBOD w/ Hot Spare
Maximum Capacity	8TB
Host Interface	Mini-SAS (SFF-8088) x 1 (w/ 4 x PCIe Controller)
Drive Interface	4 x 3.5” SATA I / SATA II or SAS 3Gbps
Cooling Fan	3.15" Ball Bearing
Power Supply	150W (115V-230V Switchable)
Status Indicators	Status and Power LEDs
Dimension (in)	5.3"W x 7.1"H x 10.0"D
Weight (lb)	5.9
Safety Regulations	CE, FCC, UL, RoHS
Limited Warranty	1 Year

Model	TR4X-BHA	TR4X-BHA2T	TR4X-BHA4T	TR4X-BHA8T
Hard Drive	No HDD  Bundle	500GB  SATA II * 4	1TB  SATA II * 4	2TB  SATA II * 4
Total Storage Size	N/A	2000GB = 2TB	4TB	8TB

Model	TR4X-BHA	TR4X-BHA2E	TR4X-BHA4E	TR4X-BHA8E
Hard Drive	No HDD  Bundle	500GB  RAID SATA II * 4	1TB  RAID SATA II * 4	2TB  RAID SATA II * 4
Total Storage Size	N/A	2000GB = 2TB	4TB	8TB

Model	TR4X-BHA	TR4X-BHA2S	TR4X-BHA4S	TR4X-BHA8S
Hard Drive	No HDD  Bundle	500GB  SAS SATA II * 4	1TB  SAS SATA II * 4	2TB  SAS SATA II * 4
Total Storage Size	N/A	2000GB = 2TB	4TB	8TB

Note: Please allow up to 3 days for hard drive installation and testing.

Note: All hard drive bundles are pre-installed and tested before shipment. Hard drives are then packaged individually to avoid damage during shipping.
