Home > TowerRAID TR4X - 4 Bay SAS / SATA JBOD Storage Enclosure (Silver) (Refurbished, 3 Months Warranty)

TowerRAID TR4X - 4 Bay SAS / SATA JBOD Storage Enclosure (Silver) (Refurbished)

TowerRAID TR4X - 4 Bay SAS / SATA JBOD Storage Enclosure (Silver) (Refurbished, 3 Months Warranty)
TowerRAID TR4X - 4 Bay SAS / SATA JBOD Storage Enclosure (Silver) (Refurbished, 3 Months Warranty)
Item# ST-SAN-TR4X-R
Regular price: $249.00
Sale price: $155.00

Refurbished items may contain minor cosmetic damages that do not interfere with the functioning of the product.

Note: Please allow up to 3 business days for refurbished item shipment.

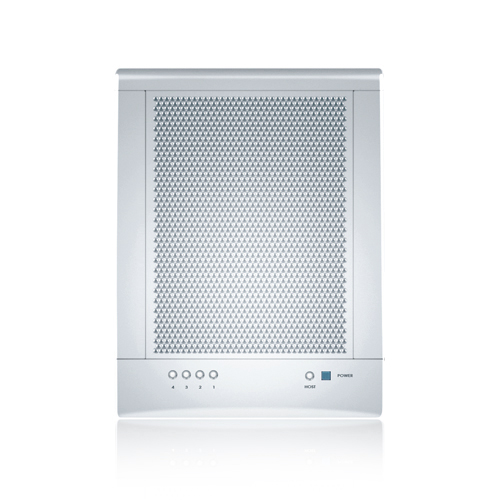

The TowerRAID TR4X is a 4-bay tower with a single mini-SAS connection, for high transfer rates of up to 400MB/s when used with a high performance RAID controller card. Utilizing high bandwidth mini-SAS (SFF-8088) cabling, the TR4X supports 3Gb/s SAS or SATA hard drives to deliver superior read / write speeds that are crucial in performance-driven environments such as video editing industry and server application. The mini-SAS ports combine four hard drives connections into one, reducing possible points of failures, while preserving uninterrupted data transfer. The TR4X also support SATA drives, allowing users the option to choose between high performance and high capacity storage solutions. Hard drive and RAID controller bundles options are available. When utilizing a SAS or SATA RAID controller, the units could effortlessly support multi-streaming of compressed high-quality playback or a single-stream of uncompressed 10-bit high definition video under various RAID modes.
Unique Features

  • Four 3.5-inch SAS or SATA hard disk drives to SFF-8088 Mini-SAS interface.
  • Accesses four hard drives using only two cables.
  • Supports JBOD, spanning, RAID 0, 1, 1+0, 5, 6 with spare via RAID controller.
  • Supports Areca, LSI, Intel, 3ware, Adaptec, HighPoint SAS or SATA RAID controllers.
  • Cable-less backplane design supporting hot-swappable SATA I, SATA II and SAS hard drives.
  • Supports plug & play for easy installation.
  • Compact enclosure with dust-free cover.
  • Supports PC, MAC and Linux. (Please check HBA or RAID controller driver compatibility.)

 Model  TR4X
 Form Factor  Compact Tower
 HDD Trays  4 Hot-Swappable 3.5"
 RAID Level  JBOD (RAID Supported via Controller Card)
 Maximum Capacity  8TB
 Compatible RAID Card  Areca, Intel, LSI, Adaptec, Dell, 3ware
 Host Interface & Transfer Rate  Mini-SAS (SFF-8088) x 1
 Drive Interface  3.5” SATA I / SATA II or SAS 3Gbps
 Cooling Fan  3.15" Ball Bearing
 Power Supply  150W (115V-230V Switchable)
 Status Indicators  Status and Power LEDs
 Dimension (in)  5.3"W x 7.1"H x 10.0"D
 Weight (lb)  5.9
 Safety Regulations  CE, FCC, UL, RoHS
 Limited Warranty  3 Months
Desktop Hard Drive Bundles
 Model  TR4X  TR4X2T  TR4X4T  TR4X6T  TR4X8T
 Hard Drive  No HDD
 Bundle		  500GB Desktop
 SATA II * 4		  1TB Desktop
 SATA II * 4		  1.5TB Desktop
 SATA II * 4		  2TB Desktop
 SATA II * 4
 Total Storage Size  N/A  2000GB = 2TB  4TB  6TB  8TB

Enterprise Hard Drive Bundles
 Model  TR4X  TR4X2E  TR4X4E  TR4X8E
 Hard Drive  No HDD
 Bundle		  500GB RAID
 SATA II * 4		  1TB RAID
 SATA II * 4		  2TB RAID
 SATA II * 4
 Total Storage Size  N/A  2000GB = 2TB  4TB  8TB

Note: Please allow up to 3 days for hard drive installation and testing.

Note: All hard drive bundles are pre-installed and tested before shipment. Hard drives are then packaged individually to avoid damage during shipping.
